The head room to hustle

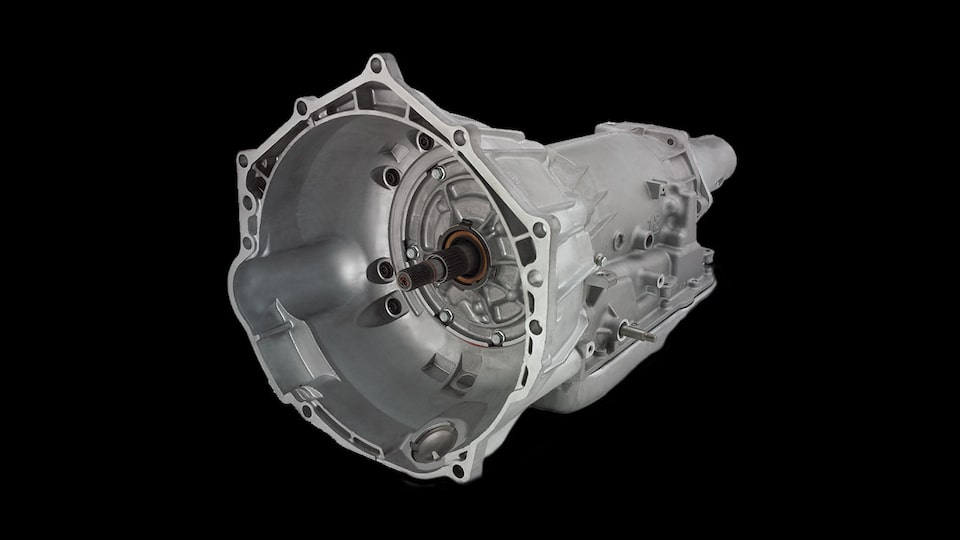

The 4L75-E is based on the 4L65-E/4L70-E. Its 650 lb.-ft. torque capacity makes it an alternative to the 4L80-E when space is an issue in the vehicle.
PART NO. 19368615
650 LB-FT TORQUE LIMIT

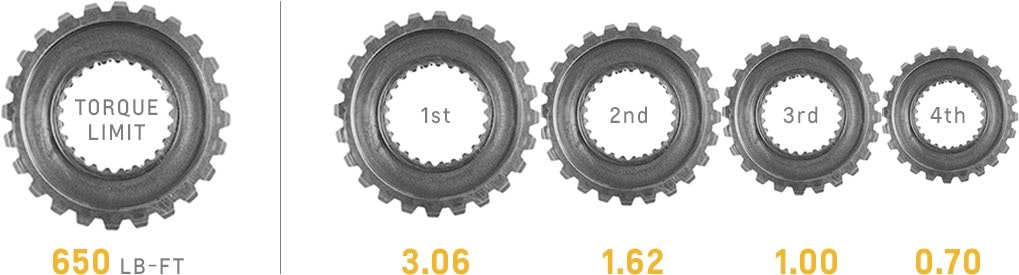

4L75-E Gear Ratios
Note: Video made for US audiences. Contact your Chevrolet Performance Stockist for more info
Big power, tight space
The 4L75-E features five-pinion gearsets, heat-treated stator shaft splines, induction-hardened turbine shaft, 8-friction-plate 3-4 clutch and specific valve-body calibration. It also has a unique, high-strength input housing, high capacity servo, and large 2–4 band.
