PARTS INTENDED FOR COMPETITION USE ONLY.

Click for more details.

Click for more details.

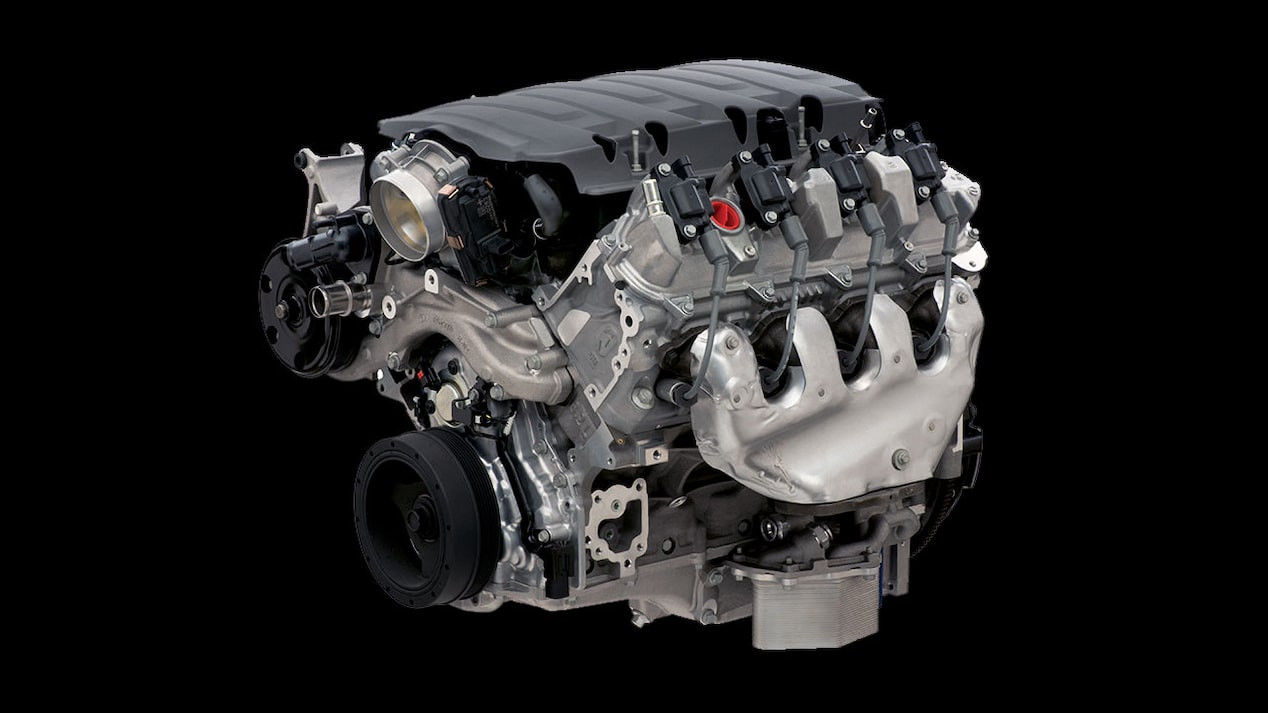

LT1, Next-Gen Small-Block

Introduced on the seventh-generation Corvette Stingray, the LT1 6.2L opened the next chapter in the long, historic legacy of the Small-Block engine.

PART NO. 19328728


460 HP @6000 RPM


465 LB/FT @4600 RPM

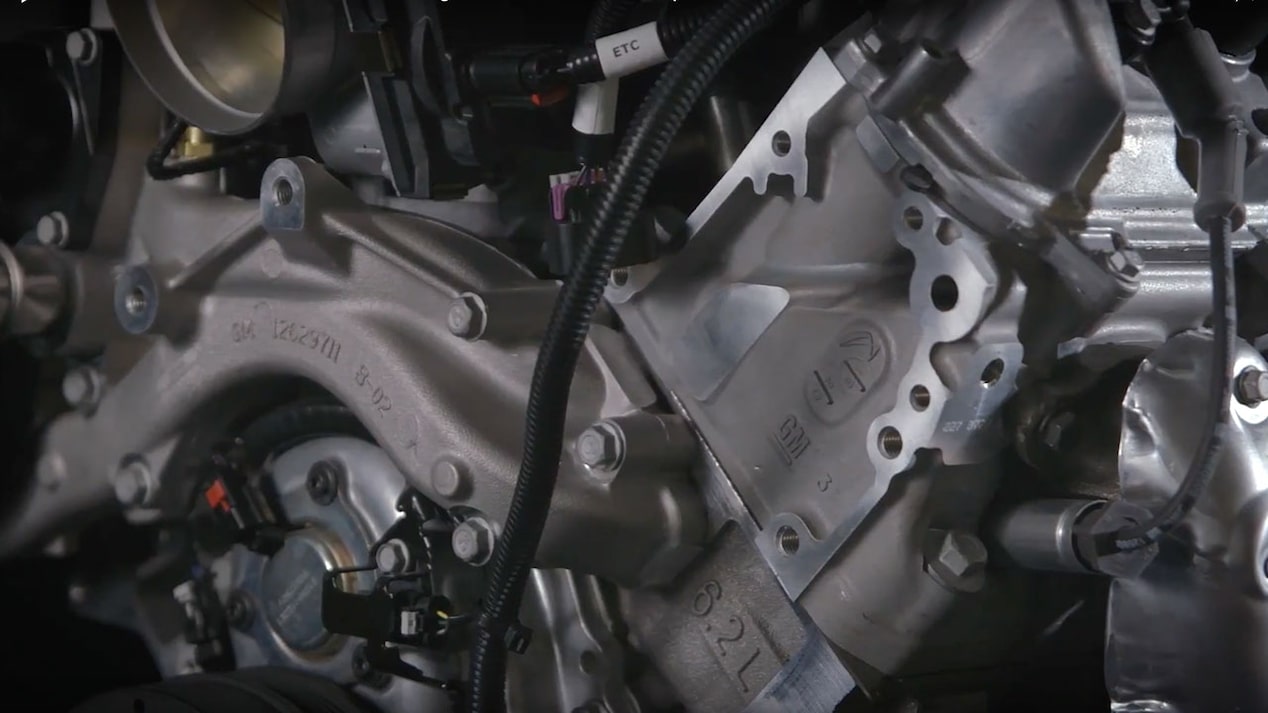

Note: Video made for US audiences. Contact your Chevrolet Performance Stockist for more info

Advanced Combustion

The LT1 is architecturally similar to the LS family of engines, but with a unique block casting, cylinder head design, oiling system and more. The LT1 is offered with a wet-sump or dry-sump oiling system.

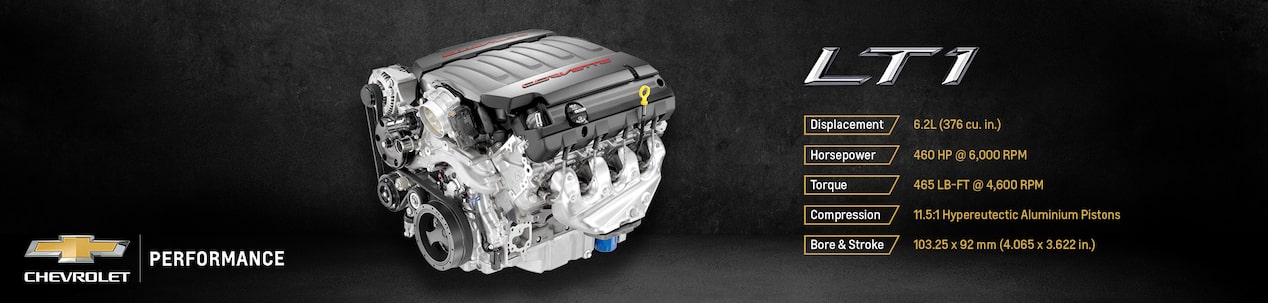

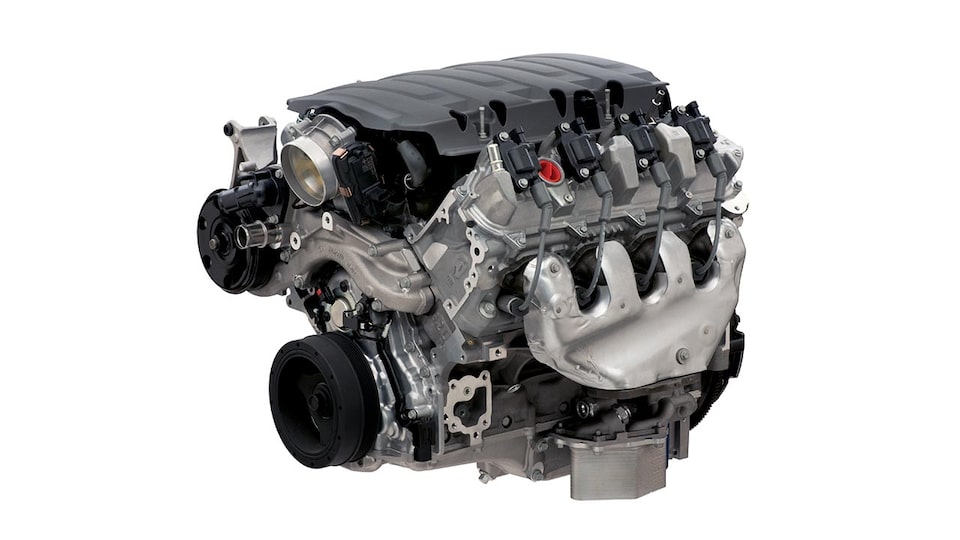

LT1 Tech Specs

  • Part Number: 19328728
  • Engine Type: Direct Injection spark-ignition Gen-V Small-Block V-8
  • Displacement (cu. in.): 376 (6.2L)
  • Bore x Stroke (in.): 4.065 x 3.622 (103.25 x 92mm)
  • Block (P/N 12619171): Cast aluminum with 6-bolt nodular iron main bearing caps
  • Crankshaft: Forged steel
  • Connecting Rods: Forged powdered metal
  • Pistons: Hypereutectic Aluminum
  • Camshaft Type (P/N 12629512): Billet steel roller
  • Valve Lift (in.): .561 intake / .531 exhaust
  • Camshaft Duration (@0.050 in.): 242° intake / 244° exhaust
  • Cylinder Heads (P/N 12620544): Aluminum, rectangular port D/I
  • Valve Size (in.): 2.130 intake / 1.590 exhaust
  • Compression Ratio: 11.5:1
  • Rocker Arms (P/N 12619829 int): Investment-cast, roller trunnion
  • Rocker Arms (P/N 12619829 exh): Investment-cast, roller trunnion
  • Rocker Arm Ratio: 1.81:1
  • Recommended Fuel: Premium pump
  • Maximum Recommended rpm: 6600
  • Reluctor Wheel: 58X
  • Balanced: Internal
