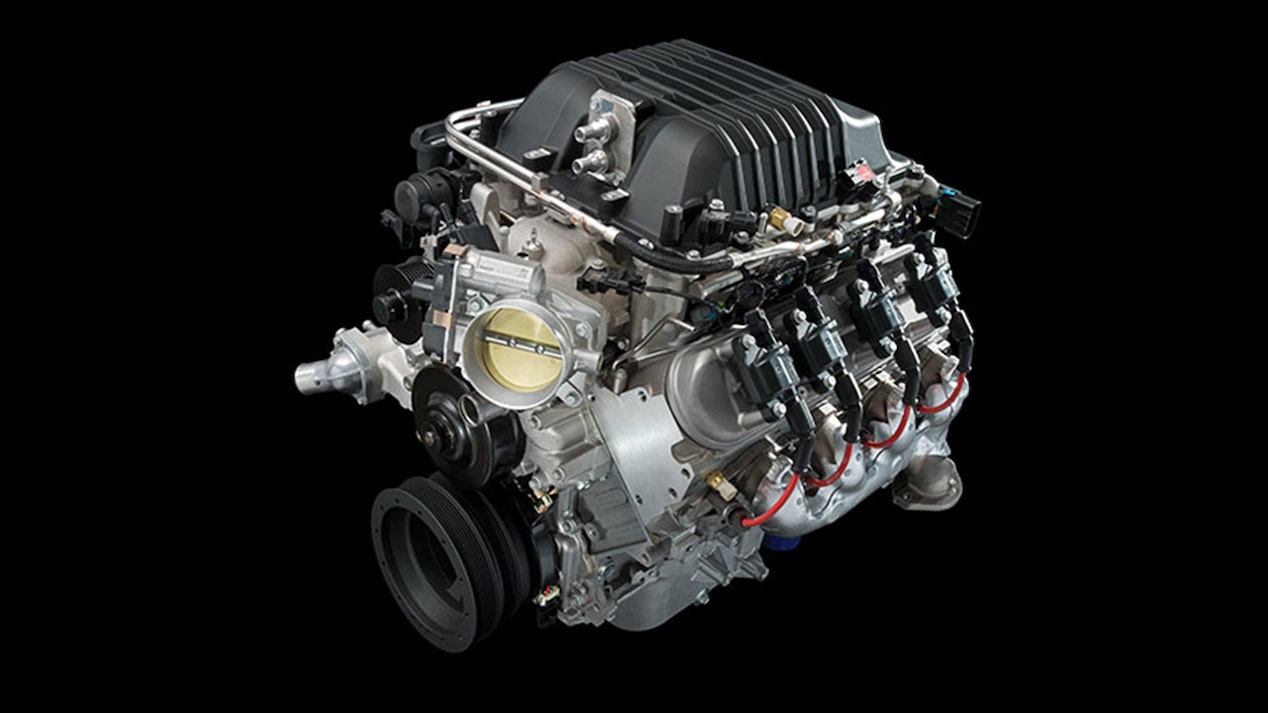

LSA

ZL1 Camaro power

We’ve updated the LSA package with the production variant from the fifth-generation Camaro ZL1, featuring 556 horsepower and 551 lb.-ft. of torque.

PART NO. 19331507


556 HP @6100 RPM


551 LB/FT @3800 RPM


556 HP @6100 RPM


551 LB/FT @3800 RPM

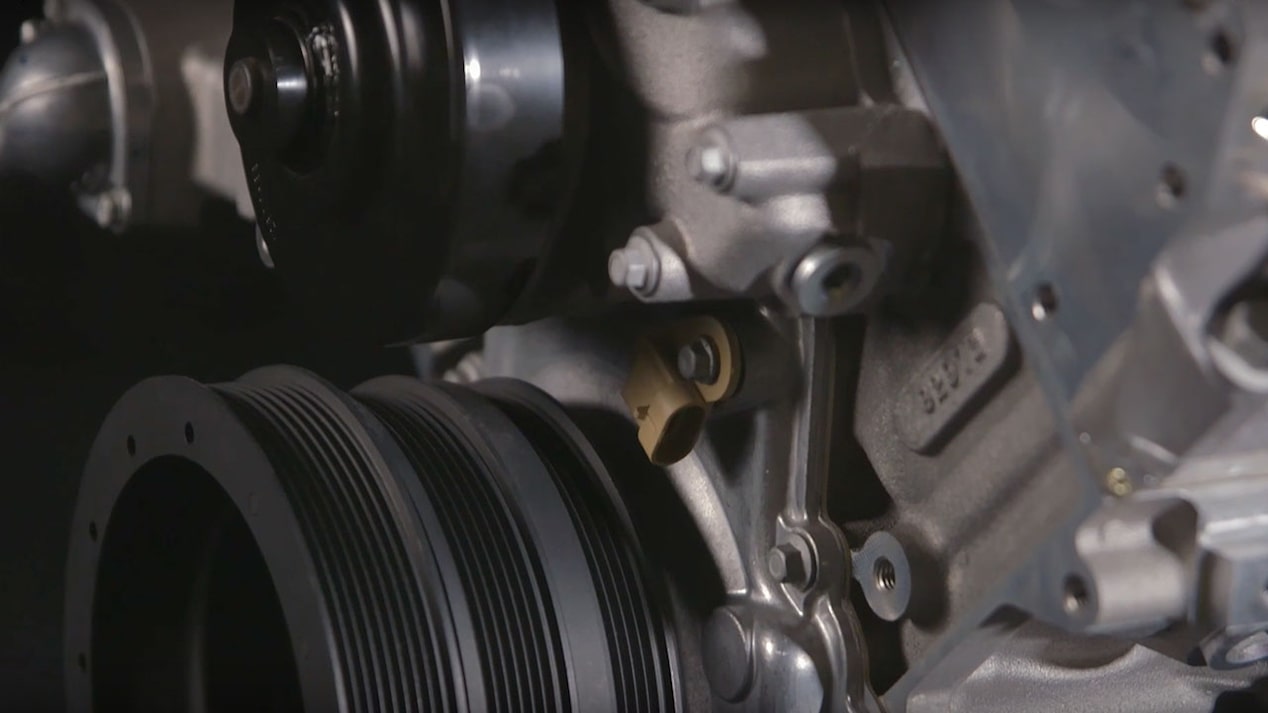

Video Player is loading.
Current Time 0:00
Duration 0:00
Loaded: 0%
Stream Type LIVE
Remaining Time 0:00

1x
    • Chapters
    • descriptions off, selected
    • subtitles off, selected

        Quiet, Breathtaking Power

        Core components include a unique aluminum cylinder block casting that’s home to a forged steel crankshaft and super-tough reciprocating parts, and integrated piston-cooling oil jets. It also features high-flow cylinder heads that support the airflow pushed by a 1.9L Eaton TVS supercharger.

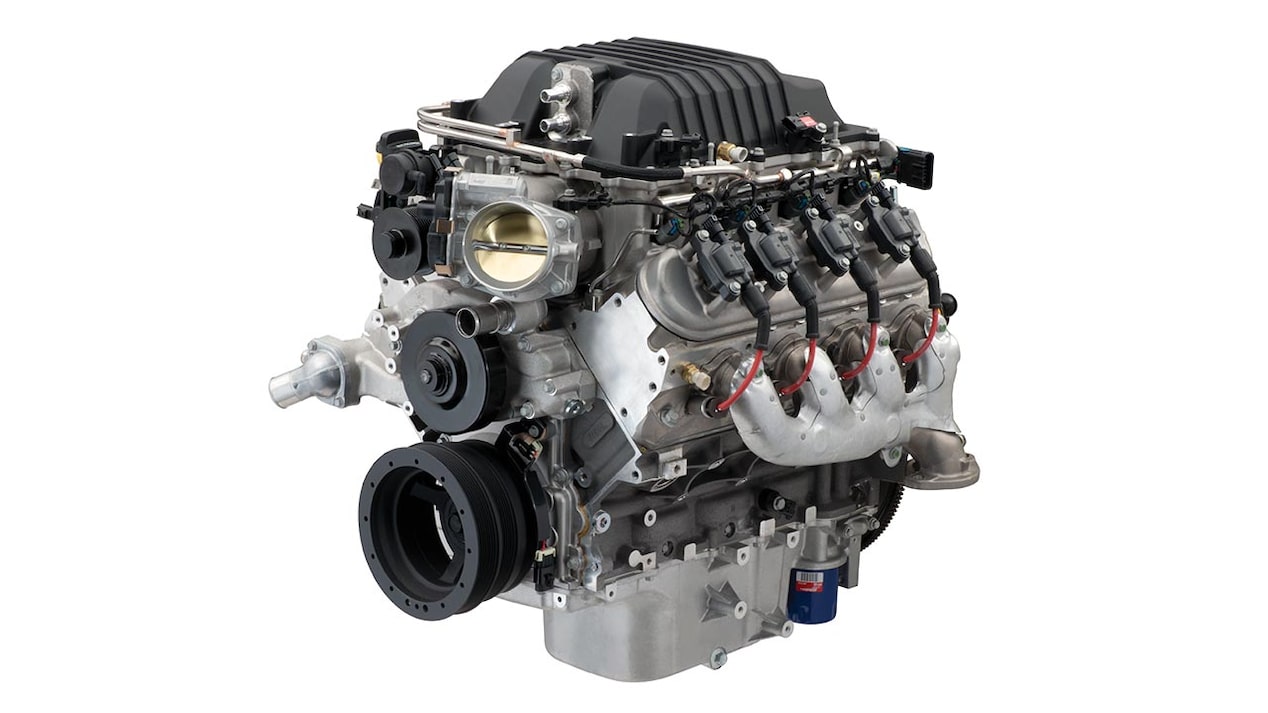

        LSA Tech Specs

        • Part Number: 19331507
        • Engine Type: LS-Series Gen-IV Small-Block V-8
        • Displacement (cu. in.): 376 (6.2L)
        • Bore x Stroke (in.): 4.065 X 3.622 (103.25 x 92 mm)
        • Block (P/N 12623968): Cast aluminum with six-bolt, cross-bolted main capsCrankshaft (P/N 12603616): Forged steel with eight-bolt flange
        • Connecting Rods (P/N 12604857): Powdered metal
        • Pistons (P/N 12625119): Hypereutectic aluminum
        • Camshaft Type (P/N 12623064): Hydraulic roller
        • Valve Lift (in.): .492 intake / .480 exhaust
        • Camshaft Duration (@.050 in.): 198° intake / 216° exhaust
        • Cylinder Heads (P/N 12626958): Aluminum L92-style port: “as cast” with 68-cc chambers
        • Valve Size (in.): 2.160 intake / 1.590 exhaust
        • Compression Ratio: 9.1:1
        • Rocker Arms (P/N 12669995int) Investment-cast, roller trunnion
        • Rocker Arms (P/N 12681275 exh) Investment-cast, roller trunnion
        • Rocker Arm Ratio: 1.7:1
        • Recommended Fuel: Premium pump
        • Maximum Recommended rpm: 6600
        • Reluctor Wheel: 58X
        • Balanced: Internal
